NOTE: Current units have 3 wires. The longer wire is Common. The other two are not marked, but they are Normally Closed and Normally Open. You will have to experiment to determine which is which.
Features:

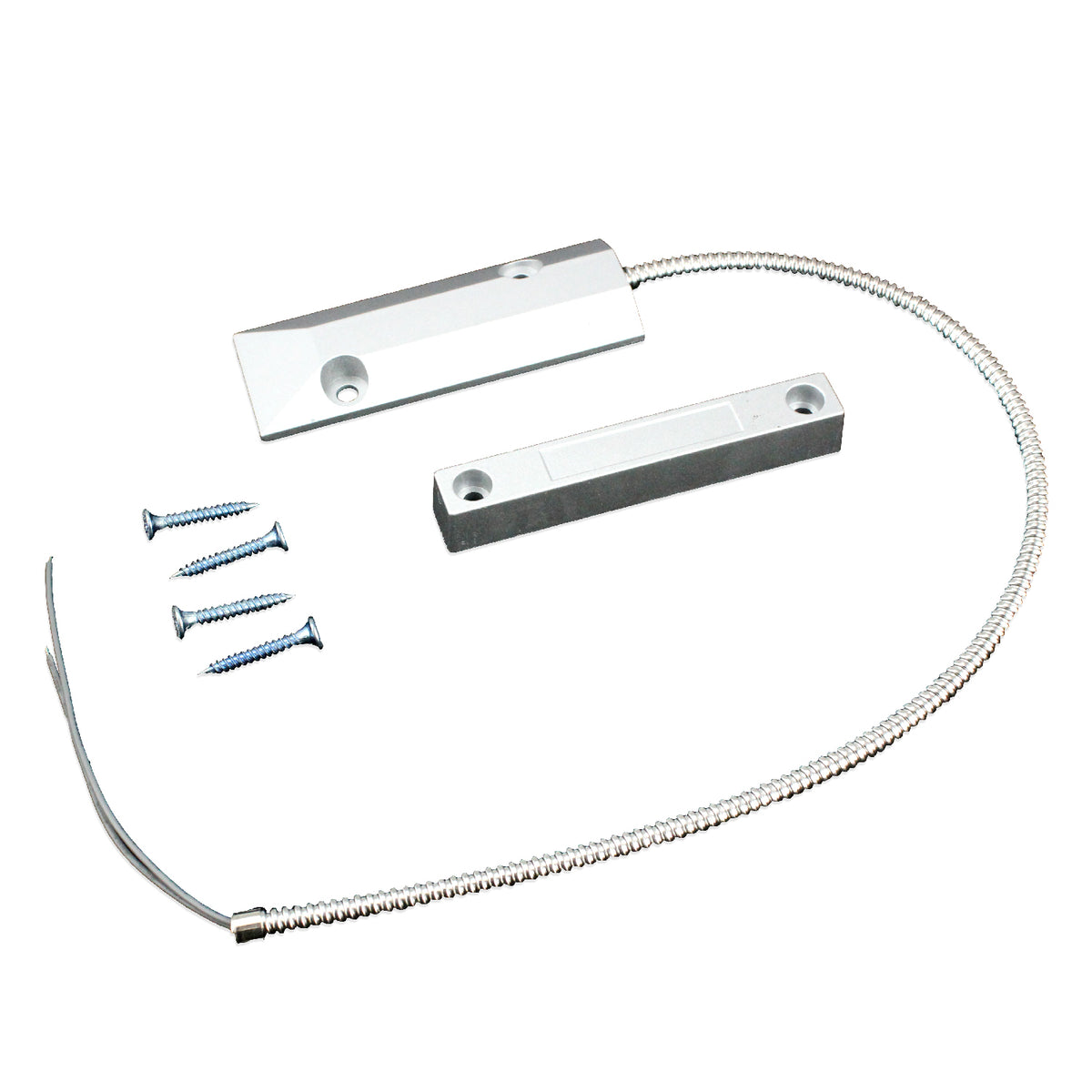

- Magnetic Reed Switch
- Dry Contact Output: NO,NC, COM
- Zinc alloy housing, sliver grey
- Cable Material: 1007UL #22AWG
- 370mm flexible Steel goose-neck cable protector conduit + Additional 100mm extra-long cable
- 10W/100VDC/0.5A in MAX
- Action Distance : 45~60mm
- Weight : 0.24kg
NO NC Door Waterproof Sensor Switch Zinc Alloy Alarm Magnetic Reed Switch Detector Sensor Roller Shutter Garage Door
